1000MM

1000MM

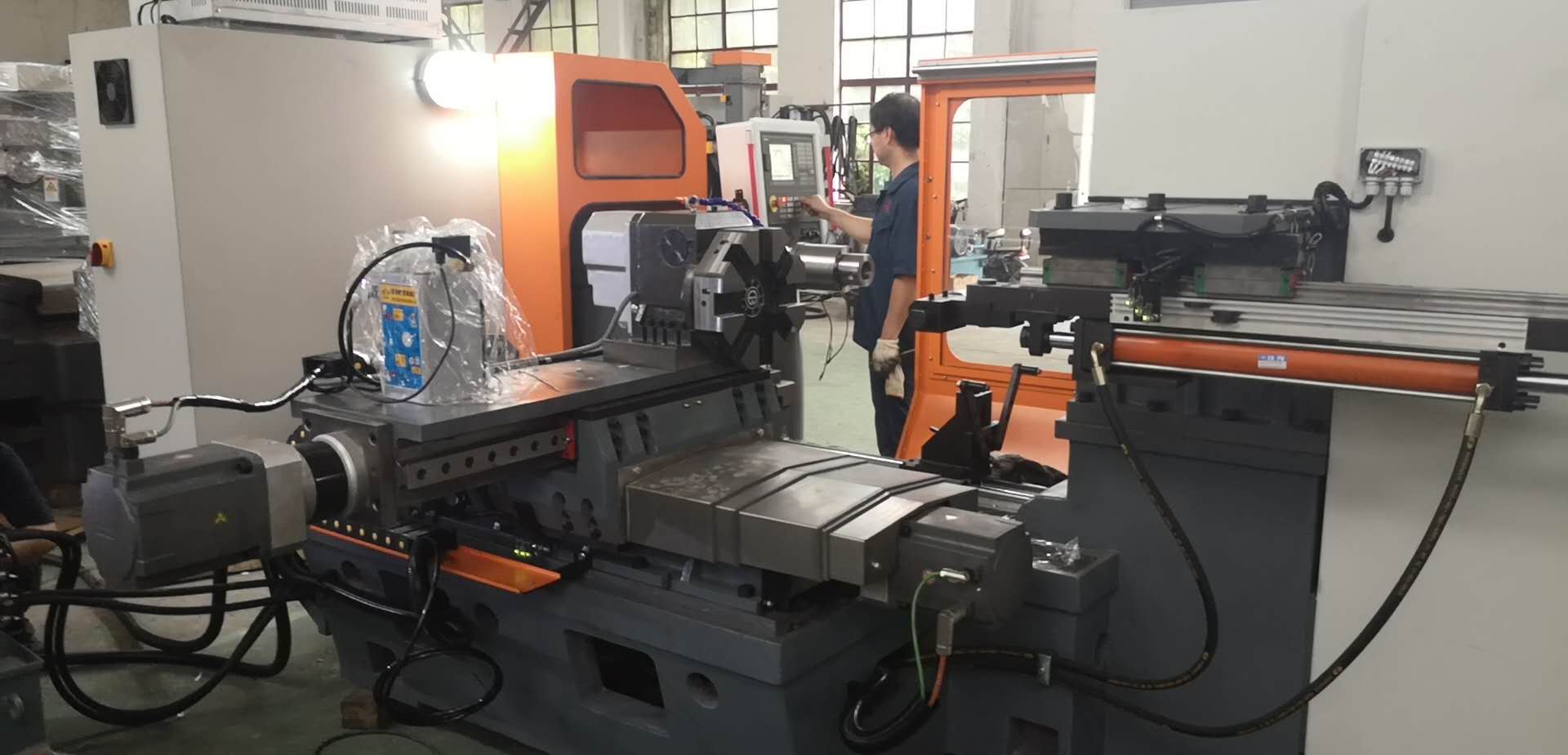

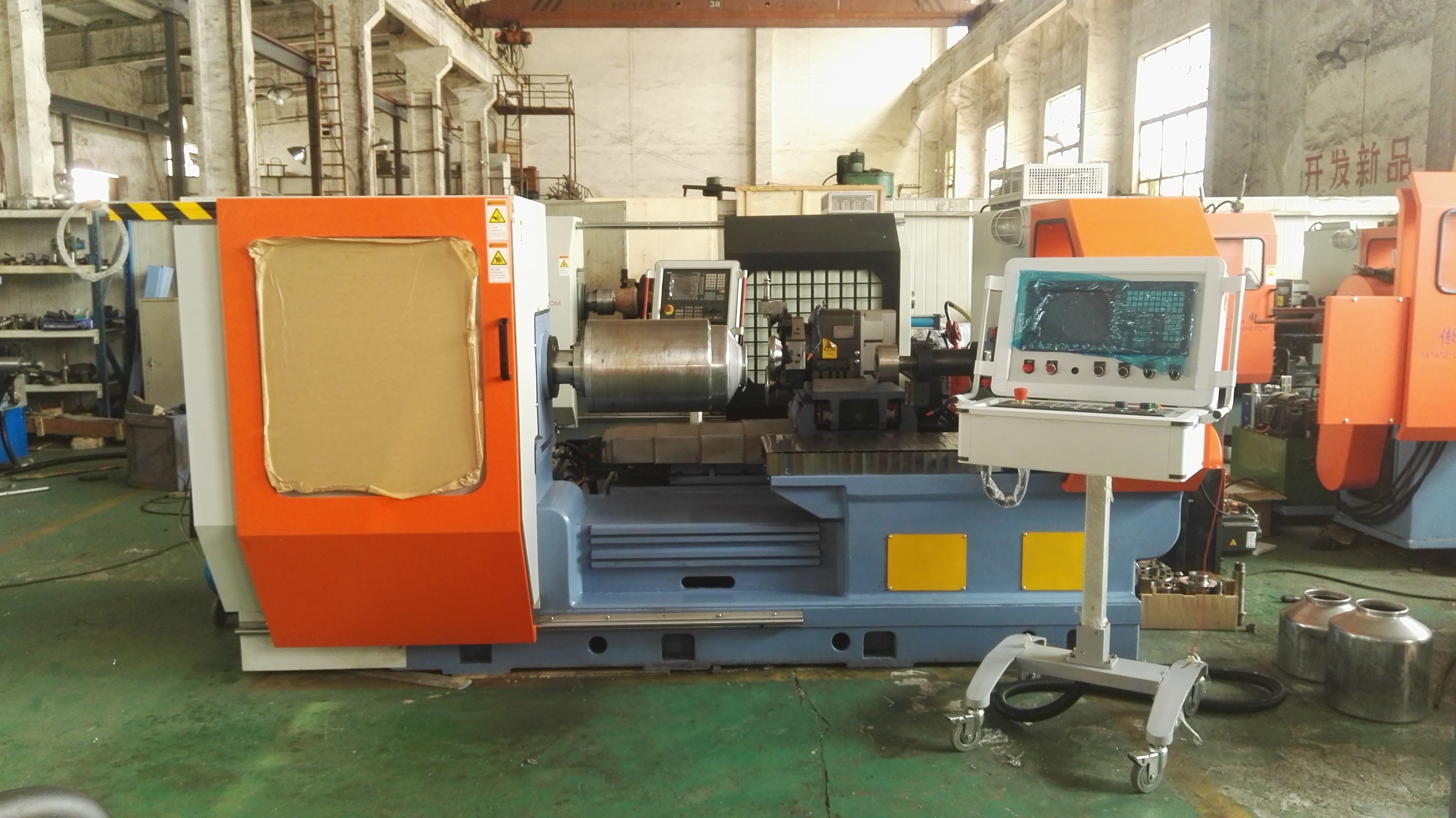

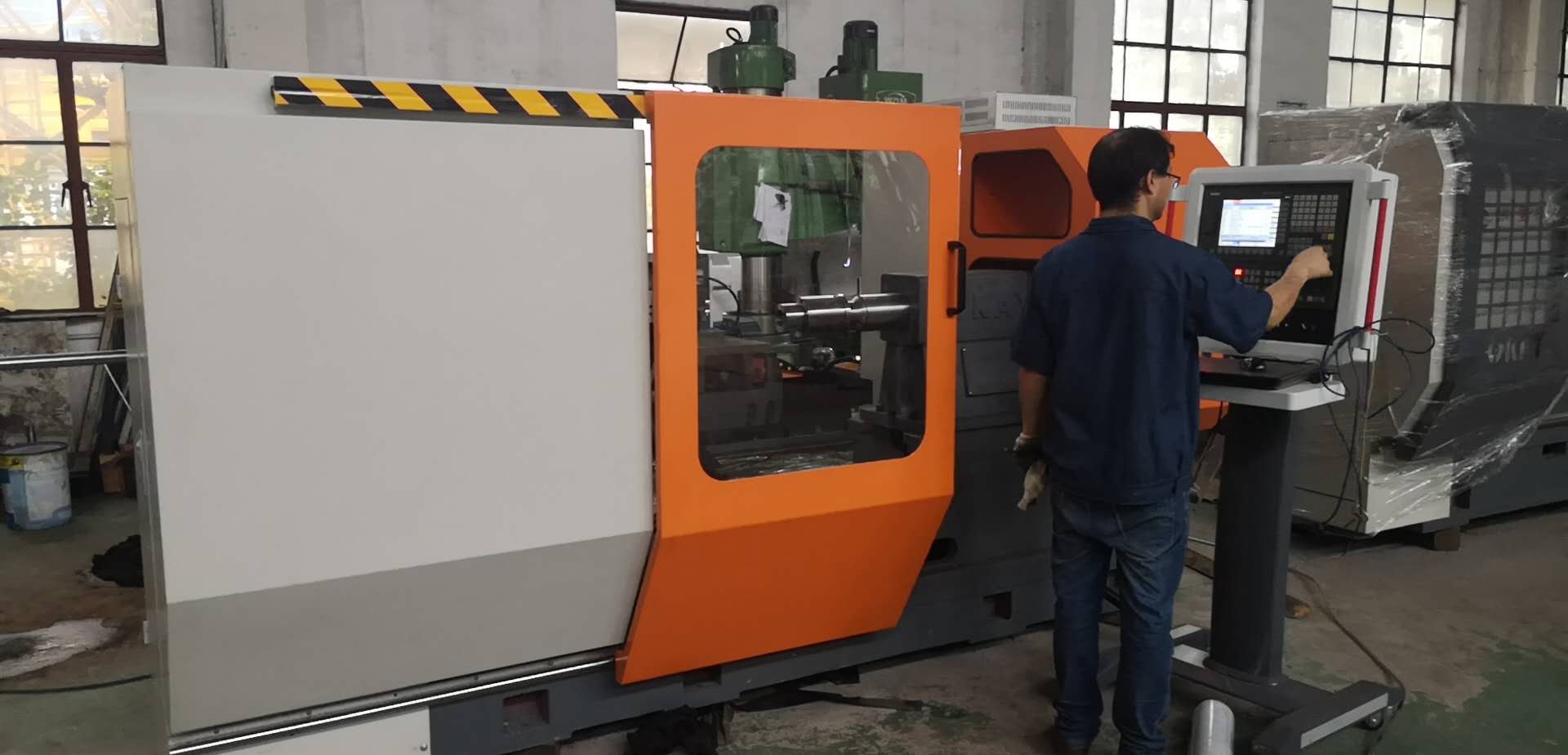

The 1000 CNC spinning machine is a general-purpose CNC spinning machine developed by our company, which can spin products with a diameter of less than 1000mm, with complete equipment and complete technology. Since August 2014, the company has carried out a new mechanical and electrical upgrade for this equipment. Currently, Siemens mid-to-high-end system 828D is adopted, which has remote network diagnosis and maintenance functions, which greatly facilitates the use of machine tools for foreign customers. It can be used with our SpinningCadV2.1 version spinning software.


  • Product Code:CNC METAL SPINNING MACHINE-D1000MM
  • Size4000 x 2400 x 1800 m
    Weight:6700 kg

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Processing method: horizontal CNC spinning
Raw material diameter: maxФ1050
Product depth: 780mm
Material: Aluminum, copper, carbon steel, stainless steel and other materials
Thickness range: max 3.5mm (tensile strength is about 380MPa ordinary carbon steel)
max 5mm(The tensile strength is about 230Mpa aluminum)
Technical index
X axial displacement 450mm
Z axial displacement 800mm
X, Z moving speed max 6m/min
X, Z axis rated thrust 50KN
Axial positioning accuracy 0.02mm
Repeatability 0.02mm
Spindle speed: 0——700rpm
To
Maximum double core distance 1150mm
Control method: Siemens 808D CNC system
Feed power: Siemens servo motor 1FL6 series
Drive control: Siemens V70 series
Spindle power: 22KW motor
Spindle control: 22kw Siemens G120 series inverter
Tailstock: Servo movement + hydraulic cylinder telescopic
Sliding table: HIWIN heavy-duty linear slide
Ball screw rod
Tool holder 8-station electric CNC tool holder
Hydraulic station 10MPa, 40L/min
The equipment covers an area of 2400 wide * 4000 long * 1800 high
Weight 6700KG
