SFB3010 Fan industry turning machine

D: 970-3000mm
D1: 800-2500mm
R: 30-300mm
H: Max 400
T: maximum 10mm minimum 4mm
D2+H2*2: 500-3000
D2+H3*2: 500-3000
H2:: Max 200
H6: Max 1000
T2: maximum 10mm minimum 3mm
R2: 50-200
D1: Minimum 850
D2: Max 3000
H1: 20-80
H2: Max 1000
A: 0-75
Thickness: maximum 10mm minimum 4mm

$0.00

Have chosen: There are no options selected

Start To Order

Add To Cart Successfully!

SFB3010 Fan industry turning machine

SFB3010 Fan industry turning machine

D: 970-3000mm
D1: 800-2500mm
R: 30-300mm
H: Max 400
T: maximum 10mm minimum 4mm
D2+H2*2: 500-3000
D2+H3*2: 500-3000
H2:: Max 200
H6: Max 1000
T2: maximum 10mm minimum 3mm
R2: 50-200
D1: Minimum 850
D2: Max 3000
H1: 20-80
H2: Max 1000
A: 0-75
Thickness: maximum 10mm minimum 4mm

  • Product Code:SFB3010 Fan industry turning machine
  • Size7200 x 7500 x 2900 m
    Weight:26000 kg

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

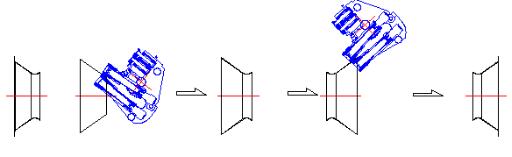

Processing method: Horizontal CNC forming machine
Technical index
X, Z axis positioning accuracy +/-0.3mm
Hole distance accuracy +/-0.05 degrees (error does not accumulate)
X, Z moving speed max 4m/min
X, Z axis screw rated thrust 100KN

way to control:
Feed power: Siemens 1KL6 series servo motor
Drive control: Siemens V70 series servo drive
Spindle indexing motor: Siemens 1FL6 series servo motor
Spindle indexing control: Siemens V70 series servo drive
Slide table: HIWIN linear slide
HIWIN ball screw
Hydraulic station Servo system pressure maximum 16MPa, 50L/min
Maximum punching pressure 50Mpa
Flanging power pressure up to 16MPa, 120L/min

Control system: Siemens 808D CNC system
Flanging proportional valve: Italy ATOS
Bearing: NSK
Hydraulic valve and hydraulic components: Taiwanese brand

Total equipment power 65KW
Power supply voltage 380V±5% 50HZ
The equipment covers an area of 7200mm long*7500mm wide*2900mm high
Equipment weight about 26.5 tons
