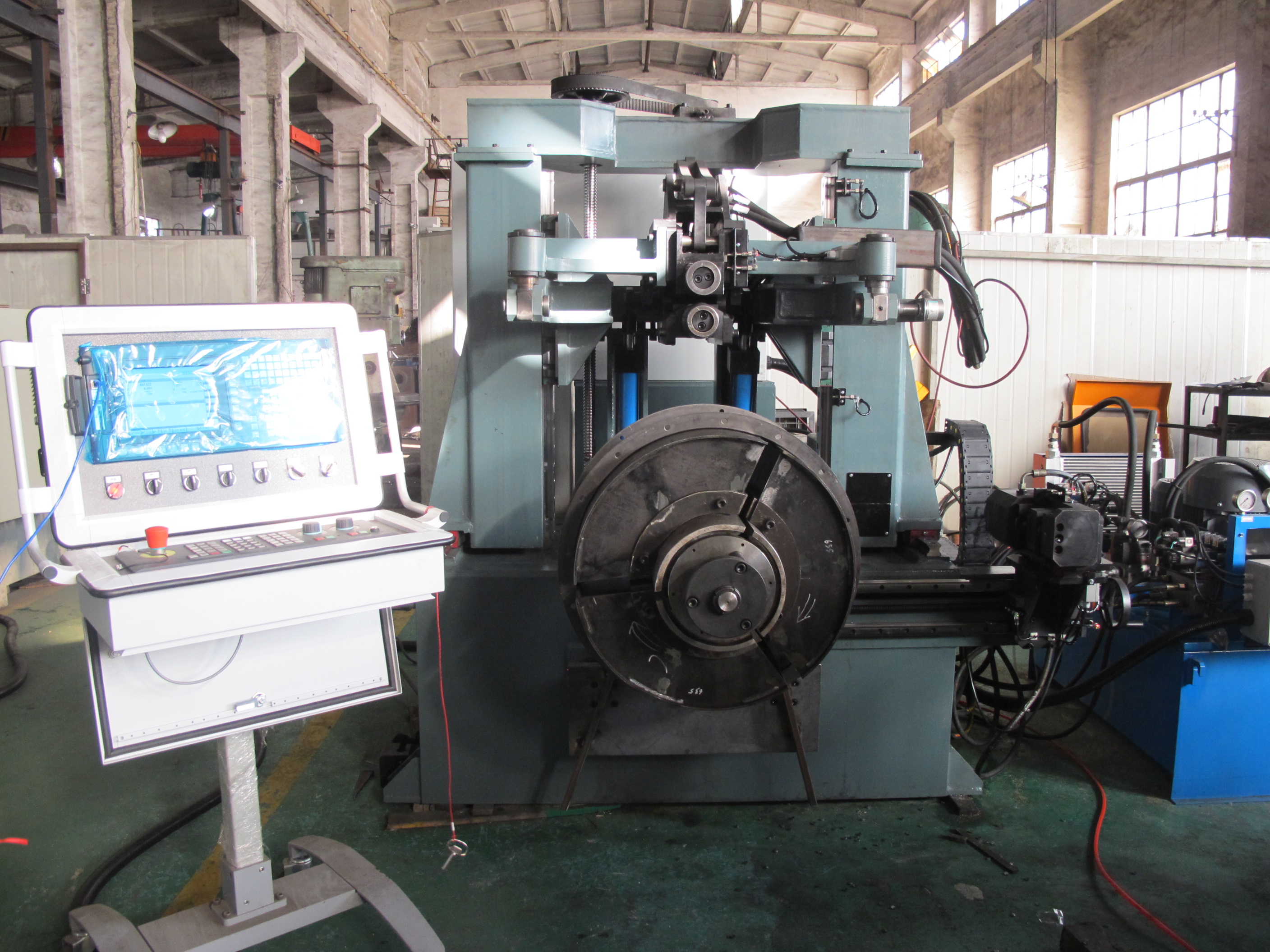

YFB2008 Fan industry turning machine


Maximum cylinder diameter 2000mm
The maximum diameter of the outer edge of the product after flanging 2200mm
Minimum cylinder diameter 550mm
Maximum cylinder length 1500mm
Minimum cylinder height 200mm
Maximum product thickness (carbon steel) 7mm
Maximum punching diameter 19mm

$1.00$1.00

Have chosen: There are no options selected

Start To Order

Add To Cart Successfully!

YFB2008 Fan industry turning machine

YFB2008 Fan industry turning machine


Maximum cylinder diameter 2000mm
The maximum diameter of the outer edge of the product after flanging 2200mm
Minimum cylinder diameter 550mm
Maximum cylinder length 1500mm
Minimum cylinder height 200mm
Maximum product thickness (carbon steel) 7mm
Maximum punching diameter 19mm

  • Product Code:YFB2008 Fan industry turning machine
  • Size5000 x 41000 x 3100 m
    Weight:10000 kg

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Mold expansion stroke 30mm (diameter change)
Mold expansion and contraction tension 3000KG
Hydraulic station power 28KW
Auxiliary power (hydraulic motor drive) 150NM
Spinning wheel drive power Siemens 1FL6 series servo motor
Drive system Siemens V70 series
Control system Siemens 808D CNC system
Punching power hydraulic cylinder
Spindle speed range 50-300 rpm
    Hydraulic oil tank capacity 220 liters
Hydraulic oil cooling system Air cooler
The equipment covers an area of ​​5000 length * 4100 width * 3100 height
Equipment power 45KW
Power Consumption 45KW
Equipment weight 10000kg
