CNC Flanging Machine ACFB-1604
CNC Flanging Machine ACFB-1604

CNC Flanging Machine ACFB-1604


The CNC Flanging Machine ACFB-1604 is a cutting-edge and efficient solution designed for precise and reliable flanging operations. With its advanced features and robust construction, it delivers exceptional performance in various applications.

Key Features of the CNC Flanging Machine ACFB-1604:

  1. CNC Control System: Equipped with a state-of-the-art CNC control system, the ACFB-1604 provides precise control over the flanging process. The user-friendly interface allows for easy programming and adjustment of parameters, ensuring accuracy and consistency in every flange formation.

  2. Versatile Flanging Capabilities: The machine is capable of handling a wide range of flanging tasks, including straight flanging, curved flanging, and multi-angle flanging. It is suitable for flanging various materials such as steel, aluminum, stainless steel, and more, making it highly adaptable to different project requirements.

  3. High Precision and Stability: The ACFB-1604 is engineered to deliver outstanding precision and stability. It maintains tight tolerances, ensuring consistent and uniform flange dimensions. The robust construction and high-quality components contribute to the machine’s stability and durability, even under demanding working conditions.

  4. Efficient Production: With its optimized design and advanced control system, the ACFB-1604 maximizes production efficiency. It offers fast cycle times and high-speed flanging capabilities, enabling manufacturers to meet tight production schedules without compromising on quality.

Machine Name

CNC Flanging Machine

Model

1600MM

Application Industry

(can be modified)

Technical Service

Complete the test in the early stage; provide online and offline training in the later stage, and complete the turnkey project.

Technical Guidance

Online 24 hours a day

Project Progress

30-120 days

Relevant Files

JOBY-CNC spinning machine for fan(en)
  • ADAVANTAGES
  • PARAMETERS
  • CUSTOMER TESTIMONIALS

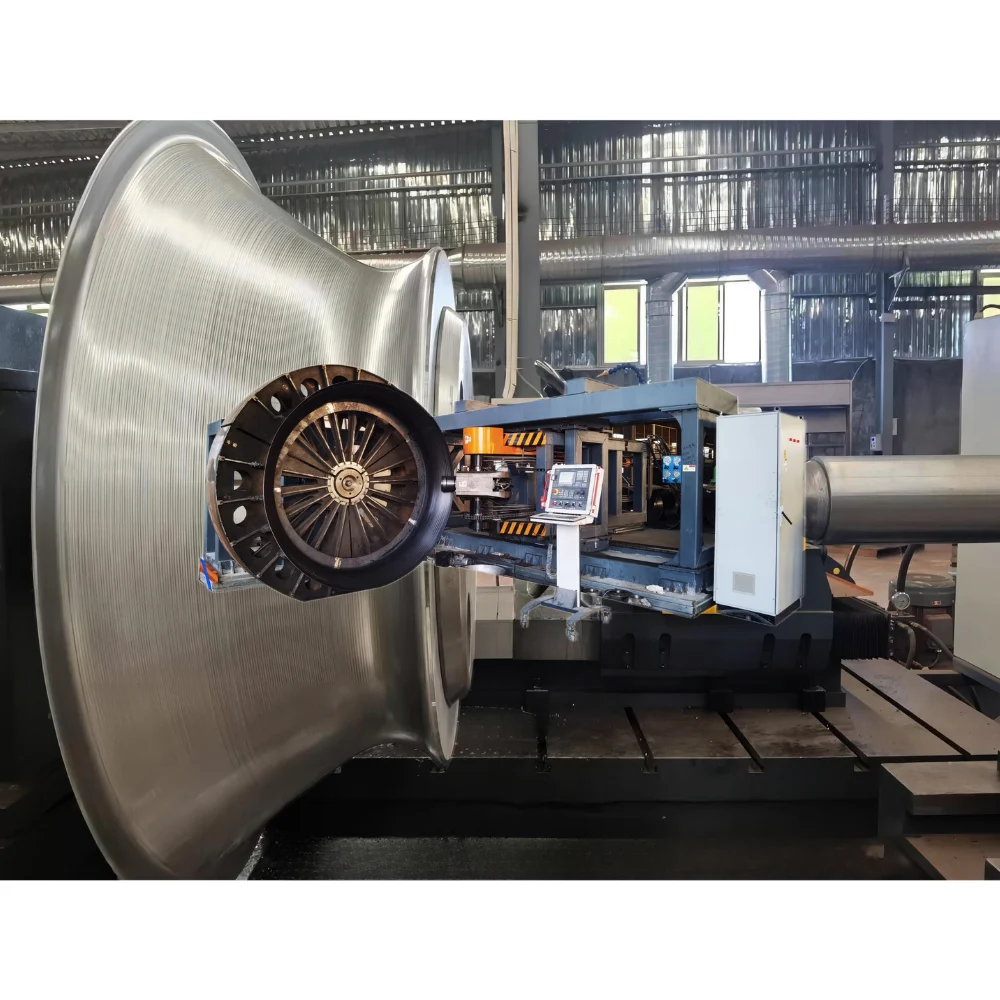

The ALTRON FB series two wheel flanging machine offers versatile flanging and piercing capabilities at any angle, including windpipes, tubes, and cones. It can handle flanging and spinning for curved surfaces with multiple tracking. Ideal for constructing windpipes, wind collectors, and pipe flahub wheels. This highly integrated and modular series operates with stability and reliability, producing highly homogeneous goods with CNC division punching and compatibility with other products.



Configuration

Standard Configuration

  • SIEMENS CNC 808D / 828D
  • SIEMENS Servo Motor & Drive
  • ATOS Hydraulic Servo Valve
  • CNC Precise Punching System
  • APEX Servo Reducer
  • Hydraulic Position Assembly
  • Hydraulic Punching Assembly
  • Hydraulic Station & Air Cooling System
  • Self-developed Spinning CAD
  • Control System Remote Maintenance

Select Configuration

  • Auto Punching Assembly
  • Flange Plasma Cutting Assembly
  • Cars for Loading and Changing Ends
  • Video Monitoring System
  • Air Conditioner for Hydraulic Station

img_email

Model No.
Max. Dia. (mm)
Min. Dia. (mm)
Max. Length (mm)
Min. Length (mm)
Max. Punching Dia. (mm)
ACFB-1605 1600 380 1500 100 20
ACFB-2008 2000 580 1800 200 20
ACFB-2512 2500 580 2000 350 24
ACSKFB-3012 3000 580 2000 350 24
Model No.
Material Thickness (mm)
Flanging Force (KN)
Clamping System (KN)
Arc Radius (mm)
Arc Radius (mm)
ACFB-1605 2-5 30 40 ≤50 30
ACFB-2008 2-8 60 50 ≤80 45
ACFB-2512 2-12 80 100 ≤80 55
ACSKFB-3012 2-12 100 120 ≤200 60

CNC Flanging Machine ACFB-1604 parameter

D1: 380—1600mm
D2=D3: max 1700mm
H1: max 70mm
H2: max 80mm
H3: 2000- 1500mm
R2: 1.5T2—-50mm
T2: max 5mm A2: max 100(arc length)

Flanging angle 0-92 degrees, program control, steplessly adjustable”

Machine Configuration Parameters

Die expansion and contraction stroke: 20mm (diameter change)
Mold expansion and contraction tightening force: 2000KG
Hydraulic station power: 20KW
Feed system: Siemens 1FL6 series servo motor
Drive system: Siemens V70 series
Control system: Siemens 808D CNC
Punching power: hydraulic cylinder
Spindle speed range: 50-300 rpm
Hydraulic oil tank capacity: 220 liters
Hydraulic oil cooling system
The equipment covers an area: 4100 length * 2500 width * 2800 height
Size: 2480 (L)*3000 (W)*2157 (H)
Equipment power: 35KW
Equipment weight: 3500kg
